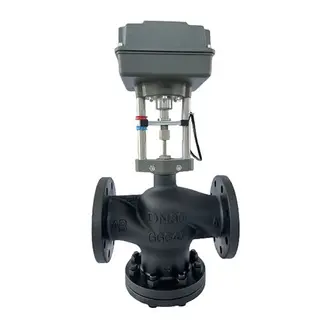

Product Name: 3 Way Temperature Control Valve
Types: Heating or Cooling Types
Material: Carbon Steel ASTM A216 WCB
Size: 1-1/2 Inch, DN40
Pressure: Class 150 LB, PN16
End Connection: Flanged
Actuation: Intelligent Integral Electric Actuator
Product Range
Body Material: ASTM A216 WCB, WCC, ASTM A217 WC6, ASTM A351 CF8, CF8M, CF3M
Size Range: 3/4-12 Inch, DN20-DN300
Pressure Rating: Class 150-400 LB, PN16-PN64
Working Temperature: -20°C to 350°C
End Connection: Flanged, Welded, Threaded
Actuator Options: Electric Actuators
Flow Characteristic: Equal Percentage, Linear
Seat Leakage: ANSI B16.104 Class IV, Class V, Class VI
Power Supply Voltage Power: AC 200V±10% 50Hz or AC 380V±10% 50Hz
3-Way Temperature Control Valve
The 3-Way Temperature Control Valve is an advanced control system designed to regulate the temperature of various media in industrial applications. It consists of several key components, including a mixing or diverting valve, an electric actuator, a temperature sensor, and a capillary tube, all working in unison to provide precise temperature control.
1. Types and Applications
- Heating Type: Designed to close the valve when the medium's temperature exceeds the set point, preventing further heat input.
- Cooling Type: Operates by opening the valve to allow cooling when the temperature rises, ensuring the medium remains within the desired range.
2. Key Features and Benefits
- Precision and Reliability: Offers high control accuracy with stable operation, ensuring safety and dependability in various industrial settings.
- Uniform Temperature Response: Utilizes a temperature-sensitive liquid that expands uniformly, allowing for proportional and precise control adjustments.
- Ease of Operation: Features a simple temperature setting mechanism that is user-friendly and easily adjustable.
- Compact Design: With a small footprint and lightweight construction, the valve is easy to install and integrate into existing systems.
