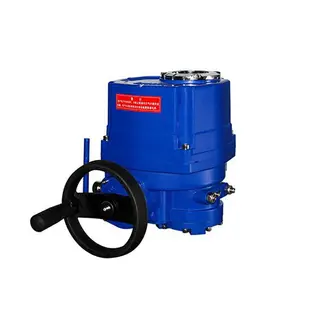

Product Name: Explosion Proof
Electric Actuator with Hand Wheel
Shell Material: Die-Cast Aluminum Alloy (Powder Coated)
On-Off Type:
Feedback: Active Contact Signal, Passive Contact Signal
Regulation Type:
Input & Output Signal: DC 4-20mA, DC 0-10V
Lifespan: 100,000 Times
Output Torque: 50 to 4000Nm
Angle of Rotation: 90° ± 4°
90° Cycle Time: 15S, 30S, 60S
Optional Voltage: DC 24V (±10%), AC 110-220V, 50/60Hz
Protection Class: IP65
Explosion Proof: EX d II BT4
Optional Accessories: Over Torque Protectors, Dehumidify Heater, Stainless Steel Coupling & Yoke
Ambient Temperature: -20 to +60°C
The
handwheel electric actuator offers precise control and high stability, with excellent anti-deviation capabilities. It maintains consistent thrust or torque, effectively overcoming imbalances in the medium for accurate process parameter regulation.
Key Features
Stable Performance: The actuator provides constant thrust or torque, ensuring reliable control even under varying load conditions.
Easy Reversal: Simple adjustment of valve positions with the ability to switch between positive and negative effects, even during off-signal operations.
Energy Versatility: Compatible with electric, hydraulic, and pneumatic energy sources to convert energy into linear or rotational motion.
High Thrust Capacity: Capable of generating strong thrust comparable to hydraulic actuators, suitable for demanding applications.
Applications: Ideal for industries requiring precise and continuous control, such as chemical processing, oil and gas, and power generation.
