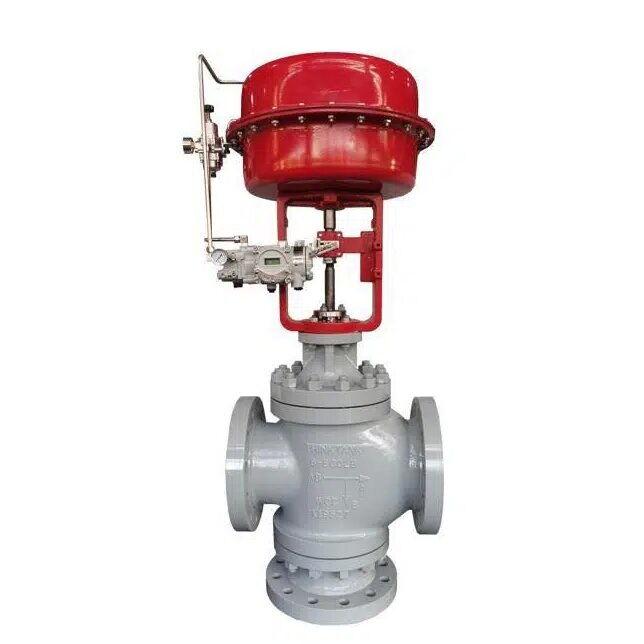

Product Name: Extended Bonnet Globe Control Valve
Key Features: Unbalanced Single Seat Plug with Bellows Seal
Size Range: 3/4-12 Inch, DN20-DN300
Pressure Rating: Class 150-600 LB, PN16-PN100
Body Material: ASTM A216 WCB, WCC, ASTM A217 WC6, ASTM A351 CF8, CF8M, CF3, CF3M
Temperature Range: -196℃ to 540℃
Connection: Flanged, Welded
Flow Characteristic: Linear, Equal Percentage, Quick Open
Rangeability: 50:1
Leakage: IEC 60534-4:2006 Class VI (Soft Seat), Class IV (Metal Seat)
Actuator Options:
Pneumatic:
1. Multi-spring Diaphragm Actuator
2. Piston Type Actuator
