Fluorine Lined Globe Control Valve, ASTM A216 WCB, DN25, PN16

Name: Fluorine Lined Globe Control Valve, ASTM A216 WCB, DN25, PN16
SKU: cncv-240521-ucv-01
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Model No.: CNCV-240521-UCV-01

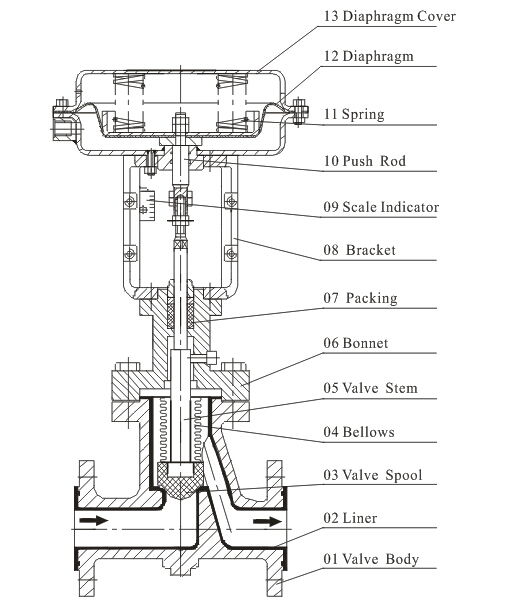

Introducing our Fluorine Lined Globe Control Valve: crafted with precision, it boasts an unbalanced single seat plug design for optimal performance. Manufactured with ASTM A216 WCB material and designed to DN25 and PN16 specifications, it ensures durability and reliability in operations. With a 1-inch size and Class 150 LB rating, it guarantees seamless integration into various systems. Plus, its PTFE, FEP, and PFA lining provide superior resistance to corrosive substances, making it an ideal choice for demanding environments.

Detail Information

Product Name: Fluorine Lined Globe Control Valve
Key Features: Unbalanced Single Seat Plug
Material: ASTM A216 WCB
Size: 1 Inch, DN25
Pressure: Class 150 LB, PN16
Lined Material: PTFE, FEP, PFA

Product Range

Size Range: 3/4-8 Inch, DN20-DN200
Pressure Rating: Class 150-600 LB, PN16-PN100
Body Material: ASTM A216 WCB, ASTM A217 WC6, ASTM A352 LCB, ASTM A351 CF8, CF8M, CF3, CF3M
Connection: Flanged, Welded
Temperature Range: -29℃ to +150℃
Flow Characteristic: Linear, Equal Percentage, Quick Open
Rangeability: 30:1
Leakage: IEC 60534-4:2006 Class VI (Soft Seat)
Actuator Options:
Pneumatic:
1. Multi-spring Diaphragm Actuator
2. Piston Type Actuator
