Product Name: Lug Type
Butterfly Control Valve
Structure: Centre Sealing
Body Material: ASTM A351 CF8
Seat Material: EPDM Rubber
Size: DN80, 3 Inch
Pressure: PN16, Class 150 LB
End Connection: Lug End
Actuation: Pneumatic Actuator
Product Range
Standards: API 609, ANSI B16.34
Body Material: Ductile Iron, Carbon Steel, Stainless Steel
Seat Material: EPDM, NBR, PTFE
Size Range: 2-20 Inch, DN50-DN500
Pressure Rating: PN10, PN16, Class 150 LB
Medium: Water, Oil, Gas
Working Temperature: -40°C to +120°C
Actuator Options: Single Acting or Double Acting Pneumatic Actuator

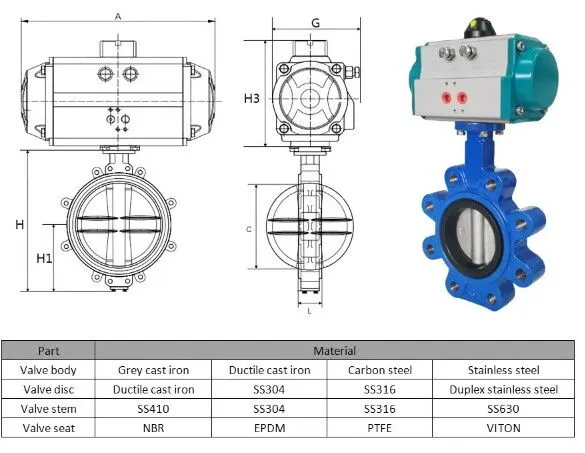

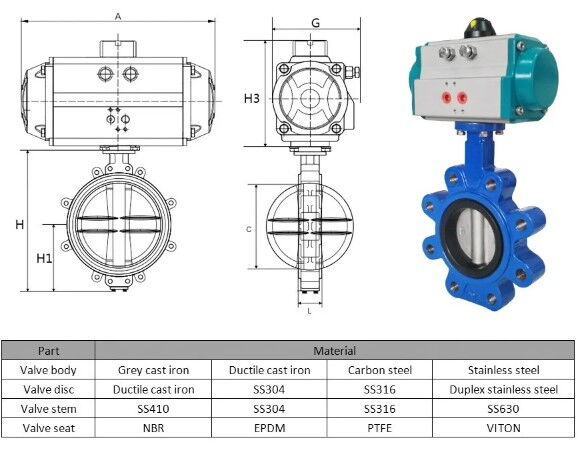

Pneumatic Lug Type Control Butterfly Valve
Mechanism: It utilizes a rotating disc to control fluid flow; aligned for flow stoppage, perpendicular for flow allowance.
Valve Material: The body and disc are crafted from stainless steel options including SS304, SS316, SS304L, and SS316L, offering strength and resistance to various environments.
Actuation: Operated by air pressure through an actuator, available in both double and single action configurations for flexible control.
Configuration: A straightforward 2-way design with distinct inlet and outlet ports for efficient fluid flow management.
Lug Design: It features lug connections for easy and secure pipeline integration.
