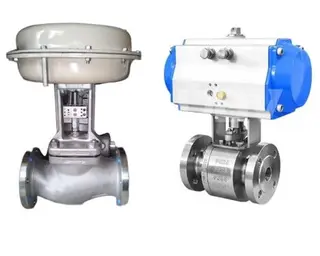

Comparing Cast Steel and Forged Steel Control Valves

Cast steel and forged steel control valves are critical components in industrial fluid control systems. These two types of valves differ significantly in their manufacturing process, mechanical properties, pressure resistance, sealing performance, and application areas. A deep understanding of cast steel and forged steel control valves helps engineers select the most suitable material for specific working environments, ensuring the efficient and safe operation of the system. This article will analyze the features, advantages, disadvantages, and application scenarios of cast steel and forged steel control valves, helping readers better understand their selection criteria and practical applications in industrial settings.

Cast Steel Control Valves

Cast steel refers to steel components produced through the casting process. This method is suitable for manufacturing control valves with complex shapes that are difficult to form through forging or machining. Cast steel control valves are typically classified into cast carbon steel, cast low-alloy steel, and cast special steel. The production process for cast steel is relatively simple and suitable for mass production. It can easily form complex internal structures, making it widely used in medium- and low-pressure applications.

1. Cast Steel Control Valve Advantages

Lower Production Cost: Cast steel control valves are suitable for large-scale production. The casting process significantly reduces production costs, especially when manufacturing components with complex shapes or internal cavities.

High Adaptability: The casting process can produce valves from various materials, such as ductile iron, malleable cast iron, and ultra-low carbon stainless steel, making it adaptable to different operating conditions.

Design Flexibility: The casting process allows for the production of control valves with complex internal cavity designs, giving designers greater freedom.

2. Cast Steel Control Valve Disadvantages

Lower Mechanical Strength: Cast steel control valves have lower mechanical strength compared to forged steel valves. They are less capable of handling high temperatures and pressures, making them unsuitable for extreme working conditions.

Potential Internal Defects: The casting process can lead to defects such as porosity, shrinkage, and inclusions. These defects can affect the strength and sealing performance of the valve.

Rough Surface Finish: Cast steel valves typically have a rough surface and require additional machining to achieve the desired smoothness.

3. Application Scenarios

Cast steel control valves are suitable for medium- and low-pressure environments, particularly in applications where complex shapes are needed and cost is a major consideration. Examples include water treatment and certain petrochemical applications.

Forged Steel Control Valves

Forged steel refers to steel materials produced through the forging process. In this process, the metal undergoes plastic deformation at high temperatures, resulting in fine grains and a dense structure that improves the mechanical properties of the material. Forged steel control valves are typically used in environments that involve higher pressure and temperature. Compared to cast steel valves, forged steel control valves have better sealing properties and corrosion resistance, making them suitable for more demanding conditions.

1. Forged Steel Control Valve Advantages

Superior Mechanical Properties: Forged steel control valves have higher strength, toughness, plasticity, and impact resistance. They can withstand higher pressure and temperature, making them ideal for high-pressure, high-temperature, and harsh working conditions.

Excellent Sealing Performance: The forging process results in a denser metal crystal structure and a smoother surface, providing better sealing performance, particularly in applications where high sealing is required.

Strong Corrosion Resistance: Forged steel control valves have better corrosion resistance. They can operate stably in harsh environments such as acids, alkalis, and high temperatures, extending the valve's lifespan.

Longer Service Life: Due to the dense and strong structure of forged steel, these valves effectively reduce the risk of leakage, ensuring a longer service life.

2. Forged Steel Control Valve Disadvantages

Higher Production Cost: The forging process is complex, involving multiple steps and large machining allowances, which makes forged steel valves more expensive.

Limited Size Range: Forged steel control valves are typically suitable for small-diameter valves, with nominal diameters generally below DN50. There are limitations in forging large-diameter valves.

Manufacturing Complexity: Forging is a complex process that requires precise operations. For valves with complex flow paths and shapes, forged steel valves cannot be produced in one step and usually require modular manufacturing followed by welding.

3. Application Scenarios

Forged steel control valves are widely used in high-pressure, high-temperature, and high-sealing applications. They are common in industries such as petroleum, natural gas, and power generation, where high-pressure fluid control systems are required.

Comparison of Cast Steel and Forged Steel Control Valves

Conclusion

Cast steel and forged steel control valves each have their advantages and are suited for different working conditions. Cast steel control valves are cost-effective and flexible in design, making them ideal for low- and medium-pressure environments, especially in applications where complex shapes are needed and cost is a critical factor. Forged steel control valves, on the other hand, offer superior mechanical properties, sealing performance, and corrosion resistance, making them ideal for high-pressure, high-temperature, and high-sealing applications. They are widely used in industries such as petroleum, natural gas, and power generation, where high-pressure fluid control systems are essential.

When selecting the appropriate material for a control valve, engineers should consider the operating environment, pressure and temperature requirements, and cost constraints. By comparing the features of cast steel and forged steel control valves, engineers can make a more informed material choice, ensuring the valve's performance, reliability, and cost-effectiveness.
