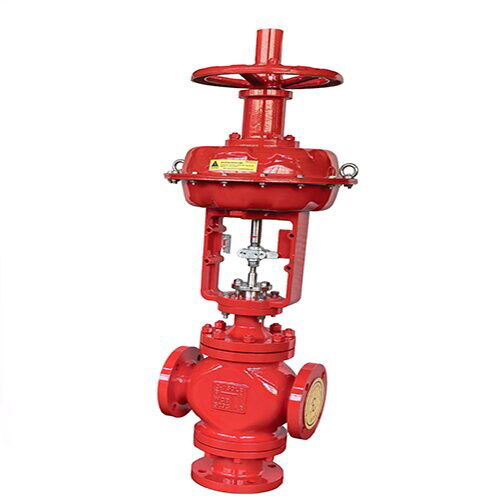

Product Name: Pneumatic 3-Way Globe Control Valve
Key Features: Three-way, Cage Guided, V-port Plug, for Diverting Service
Material: ASTM A216 WCB
Size: 3 Inch, DN80
Pressure: Class 150 LB, PN20
Rangeability: 30:1
Flow Characteristic: Linear
Leakage: IEC 60534-4:2006 Class IV (Metal Seat)
End Connection: Flanged
Actuator: Pneumatic Actuator
Product Range
Size Range: 3/4-16 Inch, DN20-DN400
Pressure Rating: Class 150-600 LB, PN20-PN100
Body Material: ASTM A216 WCB, ASTM A217 WC6, ASTM A352 LCB, ASTM A351 CF8, CF8M, CF3, CF3M
End Connection: Flanged, Welded
Temperature Range: -196℃ to +450℃
Actuator Options:
1. Single Acting Diaphragm Actuator
2. Spring Type Piston Actuator
3. Double Acting Piton Actuator
