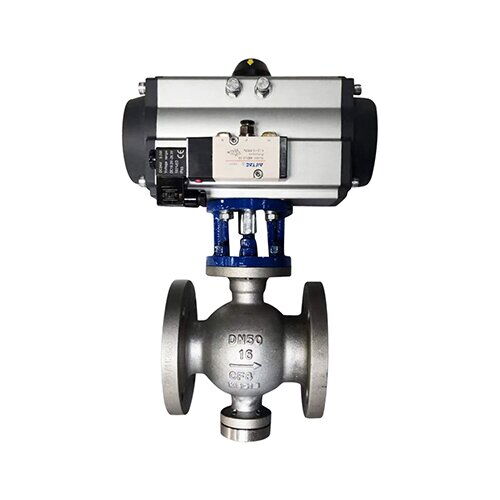

Product Name: Pneumatic V-notch Ball Control Valve
Key Features: V-notch Segmented Ball
Material: ASTM A351 CF8
Size: DN50, 2 Inch
Pressure: PN16, Class 150 LB
End Connection: Flanged
Actuation: Pneumatic Actuator
Function: On-off, Flow Regulation
Product Range
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Size Range: 1/2-24 Inch, DN15-DN600
Pressure Rating: PN16-PN100, Class 150-600 LB
End Connections: Welded, Flanged
Medium: Water, Oil, Gas, Air, Particles, etc
Working Temperature: -40°C to +350°C
Actuator Options: Double Acting and Single Acting Pneumatic Actuator
Air Supply: 2.5 bar to 8 bar, Max 10 bar
The pneumatic segmented ball valve is a user-friendly control device that requires only a 90-degree air rotation and minimal torque for secure closure. Its compact design facilitates easy operation and maintenance. Suitable for a range of media including water, solvents, acids, and natural gas, it's also adept at handling more demanding conditions with media like oxygen, hydrogen peroxide, methane, and ethylene.
